Achieving precise flow control demands a properly tuned regulating valve. Mastering valve tuning ensures stable operation, even amidst variable process conditions which often lead to inconsistent stability. Implementing effective strategies helps optimize overall process performance.
Key Takeaways
- Tuning a regulating valve helps keep processes stable and efficient. It makes sure the system works well and saves money.
- Before tuning, check the valve and calibrate it carefully. Then, adjust the settings to make the valve respond correctly.
- Good tuning prevents problems like too much movement or sticking. It helps the valve work better for a long time.

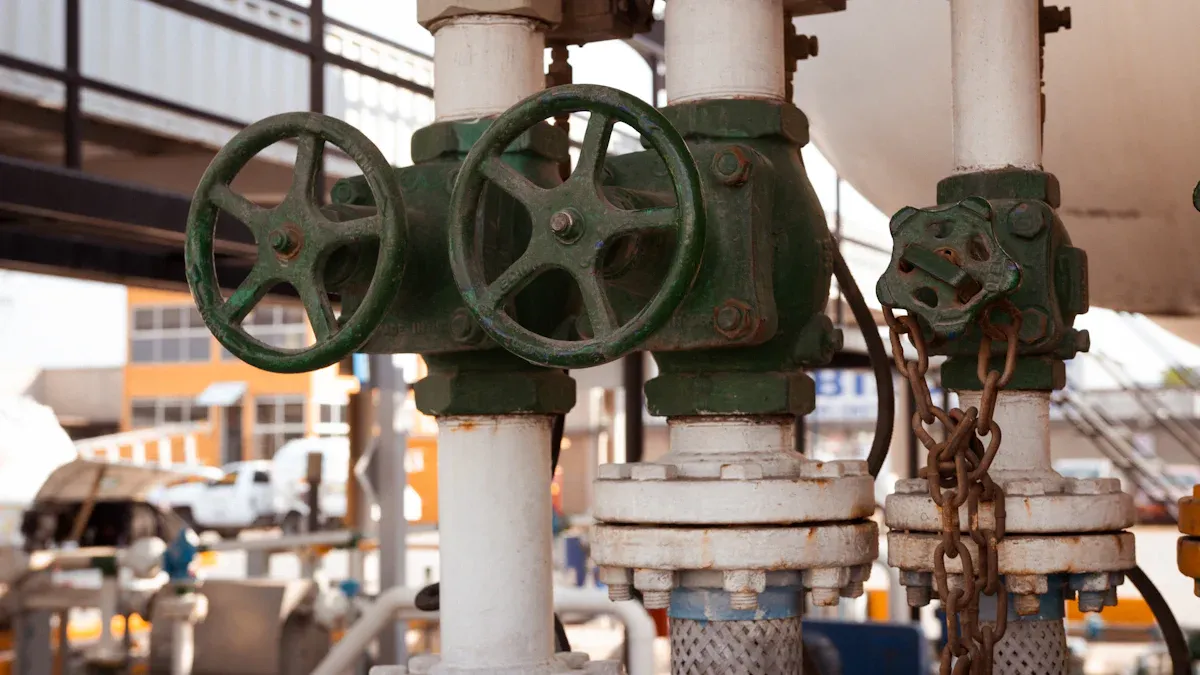

Understanding Regulating Valve Dynamics in Variable Conditions
Why Regulating Valve Tuning is Essential
Proper regulating valve tuning is crucial for maintaining process stability and achieving optimal operational efficiency. Tuned PID loops ensure control systems respond swiftly and accurately to changes, minimizing deviations and enhancing predictability. This reduces output variability, leading to improved product quality and fewer operational disruptions. Tuning also optimizes energy, raw materials, and equipment use, lowering operating costs. It reduces excessive oscillations, promoting smoother operation, minimal energy consumption, and decreased wear on equipment, thus extending its lifespan.
Proper tuning offers significant benefits:
- Achieves Predictability and Stability: Systems respond accurately to changes, minimizing deviations.
- Maximizes Efficiency and Reduces Costs: Optimizes resource use, lowering operational expenses.
- Enhances Safety and Reliability: Ensures appropriate equipment response, reducing accident risks and preventing downtime.
Quantifiable improvements from properly tuned valves include:
| Benefit | Improvement/Savings |
|---|---|
| Operational Energy Costs | 20% or more |
| Chiller Performance | Up to 30% better |
| Pump Energy Savings | Up to 80% |
Impact of Variable Process Conditions on Flow Control
Variable process conditions significantly affect flow control accuracy. Fluid viscosity, for instance, impacts the Reynolds number, which determines flow characteristics. Higher viscosity fluids increase friction losses and pressure drops within the control valve. Thicker fluids also exhibit slower response times to pressure changes, making it challenging for the regulator to maintain a stable set point. Additionally, viscosity can affect valve seal integrity, leading to increased wear or leakage.
Pressure and temperature variations also critically influence valve operation. Pressure ratings define the maximum pressure a valve can endure before mechanical failure or leakage. Operating beyond the Maximum Allowable Working Pressure (MAWP) can cause malfunction or rupture. Similarly, temperature ratings specify the range a valve can operate within without damage. Extreme heat or cold alters material properties, impacting valve function and potentially leading to catastrophic accidents or reduced performance.
Differentiating Self-Regulating vs. Non-Self-Regulating Loops
Understanding loop dynamics is essential for effective tuning. A self-regulating process inherently settles at a new process variable value without requiring corrective action from a controller. This occurs due to negative feedback within the process. Key characteristics include an open-loop gain, a primary time constant, and total loop dead time. For each possible output, a unique process variable value is naturally achieved and maintained.
Non-self-regulating loops, conversely, do not reach equilibrium without external moderation. They require continuous controller action to prevent the process variable from drifting.
| Feature/Strategy | Self-Regulating Loops | Non-Self-Regulating (Integrating) Loops |
|---|---|---|
| Nature | Reaches equilibrium without external intervention. | Requires external moderation; no equilibrium point. |
| Examples | Temperature control, many flows, liquid pressures. | Liquid-level control loops. |
| Tuning | General rules and trial-and-error often apply. | General rules often inapplicable; avoid trial-and-error. |

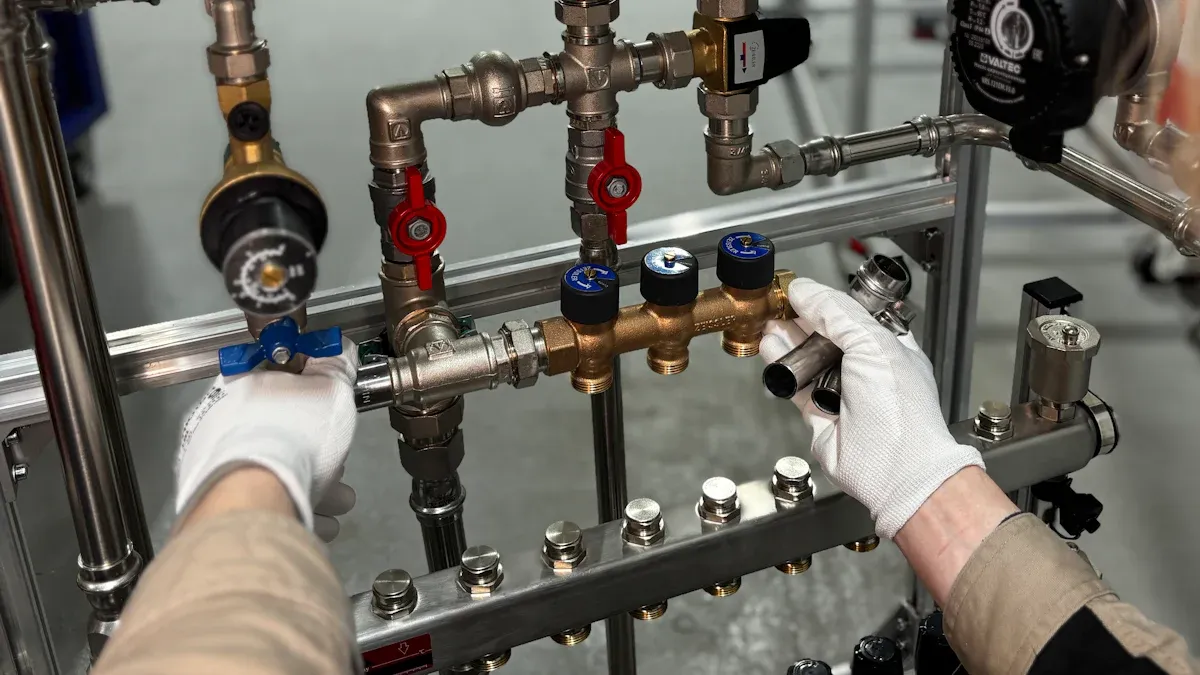

Step-by-Step Tuning for Perfect Regulating Valve Control
Pre-Tuning Assessment and Preparation
A thorough pre-tuning assessment is crucial before making any adjustments. This phase involves using specialized diagnostic tools to collect and analyze raw data. These tools should gather information on the valve’s position, control signal, I/P current, supply pressure, and actuation pressure. They also monitor vibration, noise, and can even include chemical sniffers for leak detection. Compatibility with various communication protocols like HART, Foundation Fieldbus, Profibus PA, and OPC-DA is essential. These tools read setpoint/control signals and positioner alerts/warnings, providing a complete picture of the valve’s health and operational status.
Initial Regulating Valve Adjustments and Calibration
Accurate initial calibration ensures the regulating valve responds correctly to control signals. This systematic procedure begins with prioritizing safety. Operators must follow company guidelines and wear appropriate personal protective equipment (PPE). They should understand the control valve’s components, actuator type, positioner, feedback linkages, and working principle. Gathering necessary tools like wrenches, calibration software, multimeters, specialized toolkits, and pressure gauges/calibrators is the next step. Obtaining the manufacturer’s calibration data sheet provides crucial specifications, including bench-set and process flow specifications, response curves, and dead bands.
The calibration process continues with safely isolating and depressurizing the valve from the process system. Operators then remove the actuator if necessary, following manufacturer instructions. They manually actuate the valve stem to ensure free and smooth movement, addressing any sticking or binding. Calibrating the positioner involves connecting to calibration software or manually adjusting positioner settings to the desired input/output range (e.g., 4-20 mA to 0-100%). The actuator then connects to a calibration device, such as an air or hydraulic pressure calibrator, for alignment with input ranges. Fine-tuning both the actuator and positioner ensures accurate responses to input signals. Reassembling all components carefully follows manufacturer specifications, ensuring proper connection and torque. A system test verifies the complete assembly’s performance by applying input signals and observing the valve’s response. Operators compare actual to desired output and repeat adjustments if needed. Finally, documenting all calibration results, observations, and adjustments in the maintenance log provides traceability.
Fine-Tuning Proportional and Integral Action
Fine-tuning proportional (P) and integral (I) actions optimizes control loop performance. Operators can initially set proportional gain to 2 divided by the model gain. The integral time constant can start as the sum of the deadtime and the time constant.
The Ziegler-Nichols tuning method offers a systematic approach for fine-tuning. This method, developed in 1942, uses empirical approaches to determine controller parameters. The closed-loop method involves inducing constant oscillations to identify the ultimate gain (Ku) and ultimate period (Pu). These values then feed into specific formulas for PI and PID controllers. The open-loop method uses a step test to determine dead time and time constant. These are subsequently applied in different formulas. For the closed-loop method, operators first stabilize the process, ensuring no scheduled changes. They remove integral and derivative actions by setting their parameters to very large numbers or zero. Then, they place the controller in automatic mode and make a set point change, monitoring the result. If the process variable does not oscillate, they double the controller gain. If it oscillates with decreasing amplitude, they increase the gain by 50%. If oscillations increase, they decrease the gain by 50%. If the process variable or controller output hits limits, they decrease the gain by 50%. Once constant amplitude oscillations occur, they note the Ultimate Controller Gain (Ku) and measure the period of oscillation (tu). Halving the controller gain stabilizes the loop for calculations. Finally, they calculate new controller settings using rules like these for a PI controller:
| Parameter | Ziegler-Nichols Rule | For Robust Control |
|---|---|---|
| Controller Gain (Kc) | 0.45 * Ku | 0.22 * Ku |
| Proportional Band (PB) | 2.2 * PBu | 4.4 * PBu |
| Integral Time (Ti) | 0.83 * tu | 1.6 * tu (for level control) |
| Integral Gain (Ki) | 1.2 / tu | 0.6 / tu (for level control) |
Adjusting the integral reset time directly impacts error elimination and process stability. Increasing the integral reset by 100 percent speeds up error elimination if it is too slow for the application. Some overshoot is normal when the loop eliminates error. However, significant overshoot leads to hunting. If the PI control loop’s correction continues increasing when or after the input reaches the setpoint, it indicates too much integral reset. This causes undesirable overshoot and cycling. Reducing the integral reset can eliminate or reduce this oscillation. If the control loop hunts, operators decrease the integral reset by 50 percent of the last change. If error elimination becomes too slow after adjustment, they increase the integral reset by 50 percent of the last change. The goal is to find an integral reset setting that eliminates error without causing process instability, excessive overshoot, or hunting.
Addressing Derivative Control and Locking Settings
Derivative control enhances a system’s response to sudden changes. It proves beneficial in specific process conditions. These include temperature control systems with significant process and measurement lags. Antisurge systems also benefit from derivative action, as they require immediate valve action. Large processing equipment, where momentum creates control challenges, also uses derivative control effectively.
Improperly configured derivative action carries potential risks. If the derivative term acts on the error, it can cause the derivative action to overreact to setpoint changes. This leads to a rapid rate of change in the error, potentially destabilizing the system. After achieving optimal tuning, operators must lock the settings. This prevents accidental changes and maintains consistent performance. Regular monitoring ensures the settings remain appropriate for current process conditions.
Troubleshooting and Advanced Regulating Valve Tuning Concepts
Common Regulating Valve Tuning Problems and Solutions
Oscillations frequently plague control loops. Aggressive tuning, aiming for an overly fast response, can quickly cause these oscillations. A nonlinear valve characteristic also contributes; tuning effective at one operating point might fail at another. External sources, such as interactions between loops with similar dynamics, can cause widespread oscillations.
- Deadband: A control valve with deadband creates oscillations, especially in level loops under PI or PID control. This occurs if the controller directly drives the valve or if integral action is excessive after a set point change in self-regulating processes.
- Stiction: Static friction within the valve internals causes it to stick. The controller continues to change its output, building pressure until the valve breaks free. This often results in overshooting the target position, leading to oscillations.
Understanding Process Gain and Valve Sizing
Process gain describes how much the process variable changes for a given change in the control output. Correct valve sizing is critical for optimal flow control. Incorrect sizing leads to poor control, process instability, cavitation, flashing, erosion, excessive noise, and high maintenance costs.
Engineers must collect comprehensive process data. This includes flow rates (minimum, normal, maximum), pressures (inlet, outlet, vapor), temperatures, and fluid properties. They determine control requirements like the type of flow characteristic and required control range. Analyzing critical phenomena such as cavitation, flashing, and sonic flow is essential. Selecting the appropriate valve type and trim, including anti-cavitation or anti-flashing options, prevents issues. Sizing the valve so its normal operating point is between 60% and 80% open ensures a good control range and capacity for deviations.
The Role of Instrumentation in Regulating Valve Performance
Instrumentation provides vital feedback for precise control. Flow meters and pressure transmitters continuously measure current pressure or flow values. They transmit these measured values to control electronics. The electronics compare them with a specified target value. This feedback loop allows the Regulating Valve to react in real-time, adjusting to maintain the desired pressure or flow. This intelligent control system ensures stable process conditions, reduces energy losses, and increases overall system efficiency.
Smart positioners significantly enhance accuracy and diagnostic capabilities. They offer advanced auto-setup functions, reducing commissioning time. These positioners detect valve abnormalities and signs of deterioration during operation. Features like multiple pressure sensors enable air circuit diagnosis and force balance checks. Non-contact Hall Effect sensors and frictionless spool valve manifolds improve durability and precision. Adaptive and self-calibrating functionalities maintain optimal performance despite varying process conditions.
Effective regulating valve tuning requires careful assessment, precise calibration, and fine-tuning of proportional and integral actions. This process ensures stable, efficient flow control, even in dynamic environments. Continuous monitoring and adaptive tuning practices are essential for maintaining optimal performance and maximizing system reliability for any regulating valve.
FAQ
Why is regulating valve tuning essential?
Tuning ensures stable process operation and optimal efficiency. It minimizes deviations, improves product quality, and reduces operational costs.
What are the consequences of incorrect valve sizing?
Incorrect sizing leads to poor control, process instability, and issues like cavitation or flashing. It also increases maintenance costs.
How do self-regulating and non-self-regulating loops differ?
Self-regulating loops reach equilibrium without controller action. Non-self-regulating loops require continuous controller intervention to prevent drifting.
