The Role of Solenoid Valves in Enhancing Fluid Control Systems for Modern Industries

Solenoid Valves precisely, rapidly, and automatically regulate fluid flow. They enhance efficiency, safety, and reliability across diverse industrial applications. The global solenoid valve market was valued at USD 4.99 billion in 2024, demonstrating its significant role. This essential Flow Control Valve category is projected to reach USD 5.98 billion by 2032, highlighting its growing importance.

Key Takeaways

• Solenoid valves control how liquids and gases flow. They make industrial processes work better and safer.
• These valves help automate factories. They allow remote control and monitoring of systems.
• Solenoid valves save energy. They use smart designs to reduce power use and lower costs.

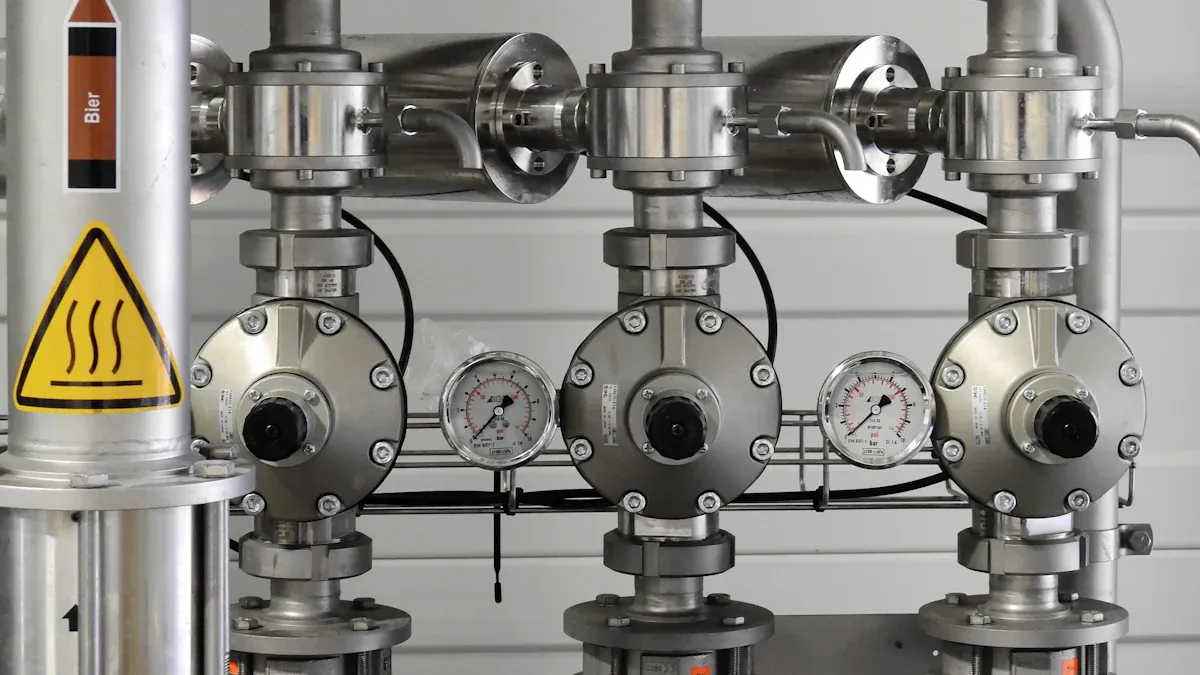

Understanding Solenoid Valves: Fundamentals of Fluid Control

What is a Solenoid Valve?

A solenoid valve represents an electromechanically operated device. It controls the flow of liquids or gases. This valve operates by utilizing a solenoid to move a soft iron core. This movement of the core either opens or closes an orifice. The opening or closing of the orifice directly controls the fluid flow. The soft iron core becomes magnetized, acting like a bar magnet within the solenoid’s magnetic field. The core’s movement is driven by its attraction to regions of increasing magnetic field density. The highest density typically occurs at the core’s final energized position. Key components include a valve body, inlet and outlet ports, an orifice, a solenoid coil, a plunger, a spring, and seals.

Types of Solenoid Valves and Their Mechanisms

Solenoid valves come in various types, each with a distinct operational mechanism.

Direct-acting solenoid valves operate using direct electromagnetic force. Energizing the coil pulls the plunger, which directly opens or closes the valve without requiring external pressure. This straightforward mechanism results in fewer moving parts. In contrast, pilot-operated valves integrate a smaller pilot valve to modulate the main valve’s position. They leverage line pressure to assist in the opening and closing processes. Direct-acting valves have the fewest moving parts, typically a movable core, spring, or fulcrum lever. Pilot-operated valves use their coils to lift a movable core, but they also incorporate a pilot and bleed orifice. This design allows them to utilize a fraction of the line pressure from the media source to assist in lifting a diaphragm or piston.

Key Enhancements by Solenoid Valves in Fluid Control

Precision and Accuracy in Fluid Regulation

Precision in fluid control is paramount for many industrial processes. Solenoid valves offer exceptional accuracy, ensuring exact fluid volumes and flow rates. Several advanced technologies contribute to this high level of precision. These include optimized magnetic circuit configurations and lightweight moving elements. Precision-engineered flow paths further enhance accuracy. Advanced materials science, utilizing specialized magnetic alloys and engineered polymers, also plays a crucial role. Intelligent control electronics, featuring programmable response timing and variable force characteristics, provide fine-tuned control. Integrated diagnostic monitoring, low-power holding circuits, and optimized magnetic designs contribute to consistent performance. Embedded microprocessors, comprehensive sensor arrays, and sophisticated control algorithms enable precise adjustments. Artificial intelligence capabilities, advanced manufacturing techniques, and innovative design approaches further refine their operation. Flow path optimization, actuator design, and control integration are also vital. Specialized polymers, precision ceramics, and micro-machined metallic components ensure durability and exact movement. Integrated position feedback, proportional control capabilities, and digital communication interfaces allow for real-time adjustments. MEMS technology also contributes to miniaturization and enhanced precision.

Automation and Remote Operation with Solenoid Valves

Solenoid valves are central to industrial automation. They seamlessly integrate with modern control systems, enabling automated processes. Programmable Logic Controllers (PLCs) commonly incorporate these valves to automate industrial processes. PLCs open and close the valves at specific times for process adjustment.

Solenoid valves are commonly integrated into PLC systems to automate industrial processes by opening and closing at specific times for process adjustment.

SCADA systems monitor and report on these underlying control systems, though they do not directly manage I/O. Automated valves, which solenoids control, must be part of a PLC or DCS system. The SCADA system then monitors and reports on these underlying control systems.

• PLCs act as data acquisition units within the SCADA architecture, installed near machinery.
• They collect data from sensors (e.g., temperature, pressure).
• They execute control logic to operate devices like valves.
• They send process data to the SCADA system.
• They receive supervisory control instructions from SCADA when necessary.

Industrial communication protocols facilitate reliable data exchange between PLCs and SCADA systems.

• Common protocols include MODBUS (RTU and TCP/IP), Ethernet/IP, Profibus, and Profinet.
• These protocols ensure error-free and timely data transmission from PLCs to SCADA, and supervisory command delivery from SCADA to PLCs.

Remote operation offers significant advantages in large-scale industrial facilities.

Smart solenoid systems allow remote tracking of actuation events, voltage levels, and response cycles without direct physical access. In automotive factories, the evolution of solenoids resulted in improved visibility into valve health, pressure changes, and command signals by pairing solenoids with diagnostic software and embedded sensors. One major advantage of smart solenoid systems in facilities is the ability to identify anomalies in real time before they cause operational delays or require emergency service. Smart systems also provide operators with the ability to adjust behavior based on changing conditions.

This enhances control, monitoring, and efficiency through seamless communication between sensors and a centralized Building Management System (BMS). Facilities implement predictive maintenance strategies, reducing downtime, extending equipment lifespan, and optimizing maintenance schedules. This leads to substantial cost savings. Improved energy efficiency and resource management result from precise data on fluid consumption, pressure levels, and flow rates. This enables intelligent decision-making and automatic adjustments based on conditions. Enhanced overall system visibility and control allow facility managers to access real-time data and control valve operations remotely. This is particularly valuable in large-scale or distributed facilities. Latching solenoid valves are ideal for remote installations. They maintain their position (open or closed) without continuous electrical power, using a magnetic latch or bistable design. This energy-saving feature makes them suitable for remote or battery-powered installations, such as remote irrigation control, automated environmental monitoring stations, and fuel systems in unmanned vehicles. Their low-power design is also beneficial in IoT-enabled industrial automation and battery-efficient control systems, as they require no continuous power to maintain their state.

Rapid Response and Cycle Times of Solenoid Valves

Rapid response and cycle times are critical for dynamic industrial processes. Solenoid valves exhibit a range of response times, from tens of milliseconds to several seconds. For instance, direct operated solenoid valves typically respond in about 30 milliseconds, while indirect operated solenoid valves can take up to 1000 milliseconds or even longer.

Rapid cycle times significantly enhance production efficiency. They optimize manufacturing processes and reduce overall cycle times. This improves energy efficiency, as fast actuation minimizes energy losses during fluid flow and pressure changes. Specifically, rapid switching reduces compressed air consumption in pneumatic systems and minimizes pressure drops in hydraulic systems. Furthermore, fast switching enables more precise control over system parameters. This leads to reduced energy waste and improved overall system performance, particularly in industries requiring frequent cycling such as packaging, food processing, and automotive manufacturing. However, challenges exist with rapid cycling.

• Increased power consumption occurs due to higher voltage and current requirements for faster switching, leading to potential heat generation.
• Components like the plunger and spring experience increased wear and tear due to overcoming mechanical inertia, potentially reducing lifespan and reliability.
• Electromagnetic lag, caused by the inductance of the solenoid coil, delays magnetic field buildup and collapse, impacting response time.
• Material limitations require components to withstand repeated rapid movements and stresses, demanding durable materials with low inertia.
• Precision control systems face challenges, as increased switching speeds demand highly accurate timing and control signals.
• Environmental factors like temperature fluctuations, vibrations, and pressure variations can affect consistent high-speed operation.
• Substantial cost implications arise due to the need for advanced materials, precision manufacturing, and sophisticated control systems.

Enhanced Safety and Reliability with Solenoid Valves

Solenoid valves contribute significantly to enhanced safety and reliability in industrial operations. Their precise control prevents overpressure situations and ensures safe handling of hazardous fluids. Many industries require adherence to strict safety standards and certifications. These certifications ensure the valves operate safely in various environments, including potentially explosive atmospheres.

These certifications demonstrate a valve’s ability to perform reliably under specified conditions, minimizing risks and ensuring operational integrity.

Energy Efficiency and Resource Optimization by Solenoid Valves

Energy efficiency and resource optimization are crucial considerations for modern industries. Solenoid valves play a vital role in achieving these goals. Assessing their efficiency involves several key energy consumption metrics. The total energy consumed during an actuation cycle, measured in joules, is a primary metric. For instance, an example shows 1.64 joules of energy used during a 150-millisecond cycle to perform 0.024 joules of work. This highlights the importance of comparing energy input to useful work output. Additionally, the concept of peak current requirements and holding current/voltage is crucial. A peak-and-hold control strategy reduces total energy consumption to 0.41 joules by dropping the voltage after initial pull-in, representing a 75% improvement. This indicates that energy consumed during different phases of operation, such as initial pull-in versus holding, are also key metrics.

Energy-efficient designs contribute significantly to reduced operational costs and resource optimization.

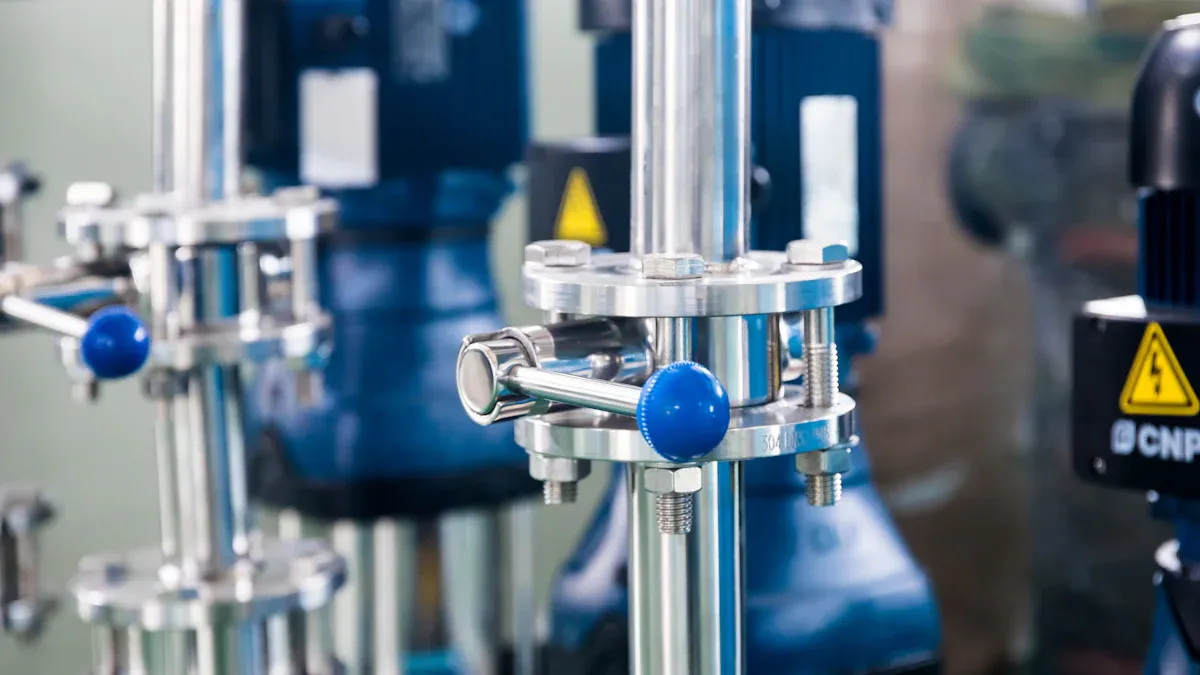

Solenoid Valves in Action: Industry-Specific Applications

Manufacturing and Automation with Solenoid Valves

Solenoid valves are indispensable in modern manufacturing and automation. They precisely control pneumatic and hydraulic systems. These valves manage the flow of air, oil, and other fluids to power cylinders, actuators, and robotic arms. This enables automated assembly lines and precise material handling. Their rapid response times ensure efficient operation in high-speed production environments. They also play a critical role in safety interlocks and emergency shutdown systems, protecting both equipment and personnel.

Chemical and Pharmaceutical Processing with Solenoid Valves

These valves are essential for chemical and pharmaceutical processing. They manage the flow of various liquids and gases. In chemical processing, they control dosing pumps and regulate transfer lines. They ensure precise flow management in reactors and storage tanks. Applications include sodium hypochlorite dosing in water treatment, hydrochloric acid transfer, and ethanol control in pharmaceutical production. The valves are vital in managing fluid flow in hazardous chemical applications. They provide safety features to prevent explosions or leakages. They also enable precise and automated flow control. Their applications include regulating fluid flow in chemical processing plants, such as mixing and transferring harmful chemicals in paint manufacturing. They also perform chemical dosing in wastewater treatment plants. These valves control the flow of volatile liquids in refineries, petrochemical facilities, and hydrocarbon storage tanks.

Solenoid control valves are electromagnetic plunger valves. They regulate the flow rates of liquids or gases. They function by opening to specific stroke positions based on a control signal. Two forces, spring force and proportional solenoid force, counteract each other. Without power, the spring keeps the valve closed. When power is supplied, the solenoid lifts the plunger, opening the valve and allowing fluid to pass through. These valves serve as metering valves in both closed and open control loops. They manage the difference between reference and actual process values or operate without feedback, respectively.

In pharmaceutical production, enhanced precision in these valves directly leads to more accurate dosing and mixing of ingredients. This accuracy ensures consistent product quality. It also reduces the likelihood of batch rejections and product recalls. Such precision is crucial for maintaining uniform product quality and meeting stringent regulatory requirements. This is especially true with the industry’s shift towards continuous manufacturing processes that demand real-time control of fluid flow rates.

Advanced control mechanisms, including electronic feedback systems, microprocessor-based controllers, and adaptive algorithms, ensure real-time adjustments. This provides precise flow control and positioning. Improved valve design and materials, through high-precision manufacturing techniques, advanced materials, and optimized geometries, minimize leakage. They also reduce wear and enhance response time and accuracy. Built-in sensors monitor parameters like position, pressure, and temperature. This enables real-time adjustments through closed-loop control systems for consistent precision. Electromagnetic coil optimization, using advanced winding techniques and high-performance magnetic materials, allows for finer adjustments of valve position and faster response times. Automated calibration procedures, temperature compensation algorithms, and adaptive learning systems maintain consistent performance and accuracy over the valve’s operational life.

Water Treatment and HVAC Systems Utilizing Solenoid Valves

These valves play a critical role in water treatment and HVAC systems. In municipal water treatment plants, they perform various functions:

• Tank filling
• Service valves on water softeners
• Piloting larger actuated valves with air or water
• Inlet valves for equipment
• Water softening
• Filtration systems
• Gravity fed systems
• High pressure systems
• Tank refilling systems
• General mains water On/Off control
• RO (reverse osmosis) systems
• Water plant activities
• Demineralised water applications
• Applications where the water has a chemical/corrosive element

In HVAC systems, these valves are integral for controlling humidity, temperature, and air purity. They commonly regulate the flow of refrigerants and fuels at various points throughout the system. This ensures acceptable indoor air quality and thermal comfort. The valves control the flow of fuel to furnaces in heaters. When the temperature falls below a set point, the valve opens to allow gas to the burner, initiating heating. Once the desired temperature is reached, the thermostat signals the valve to cut off the gas supply to the burner, stopping the heating process. In refrigeration and air conditioning systems, these valves are crucial for managing refrigerant flow. Their primary function is to turn the refrigerant flow on and off. This is essential for maintaining system performance.

These valves regulate refrigerant flow in cooling systems, ensuring efficient cooling and preventing waste. They control air and water flow, maintaining the correct balance of humidity, temperature, and airflow within HVAC systems. They automate HVAC systems, such as air conditioning units, to automatically switch functions based on temperature changes. By precisely managing fluid flow, these valves contribute to reduced energy consumption and lower utility bills. Specific applications include:

• Air Conditioning Units: They regulate refrigerant to maintain cool temperatures.
• Chillers and Cooling Towers: They manage water circulation for temperature control.
• Humidifiers and Dehumidifiers: These valves help maintain appropriate humidity levels.
• Heat Pumps and Boilers: They efficiently control heating and cooling cycles.

Oil and Gas Industry Applications of Solenoid Valves

The oil and gas industry relies heavily on these valves for safe and efficient operations. They control the flow of crude oil, natural gas, and refined products through extensive pipeline networks. In drilling operations, these valves manage hydraulic fluids for blowout preventers and other critical equipment. They are integral to safety systems, including emergency shutdown (ESD) systems, which can rapidly isolate sections of a plant or pipeline in case of an anomaly. Refineries and petrochemical plants use them for precise process control, managing the flow of various chemicals and hydrocarbons during refining and production stages. Their robust design and ability to operate in harsh environments make them suitable for this demanding industry.

Food and Beverage Production Using Solenoid Valves

Valves in food and beverage production must meet stringent hygiene and safety requirements. They require a hygienic design with smooth surfaces and minimal crevices. This prevents contamination and facilitates cleaning. Manufacturers construct them from food-grade materials and include special seals to prevent product ingress. Material selection is crucial. Materials like stainless steel, PTFE, and FDA-approved polymers are necessary. They must be corrosion-resistant, non-reactive with process fluids, and capable of withstanding repeated cleaning and sterilization without degradation.

The valves need to support Clean-In-Place (CIP) or Steam-In-Place (SIP) methods. Their design must withstand high temperatures and aggressive cleaning agents without disassembly. Advanced sealing, including specialized gaskets and O-rings, along with connection systems, prevents leakage and contamination. This maintains a hygienic seal under various operating conditions. These valves must adhere to industry standards and regulations from bodies like the FDA, 3-A Sanitary Standards, EHEDG, ISO (e.g., ISO 14159:2002), and NSF/ANSI 51. These standards dictate design, material specifications, and performance criteria. Rigorous testing, including pressure, leakage, and microbial ingress tests, along with certification from recognized bodies, validates hygienic design and performance.

Several organizations set these critical standards:

• FDA (Food and Drug Administration): Sets guidelines for food contact materials and equipment, specifically 21 CFR Part 177, which mandates that materials in food processing equipment, like these valves, must be pure and not impart harmful substances.
• EHEDG (European Hygienic Engineering and Design Group): Provides guidelines emphasizing cleanability, materials of construction, and surface finish to prevent microbial growth and ensure easy cleaning and sanitization.
• 3-A Sanitary Standards, Inc.: Develops detailed specifications for design, materials, and fabrication for valves in sanitary applications (3-A Sanitary Standard 53-06) to ensure hygienic operation.
• ISO (International Organization for Standardization): Includes standards like ISO 14159:2002, which specifies hygiene requirements for the design of machinery used in food processing, relevant for valve construction.
• NSF International (National Sanitation Foundation): Develops standards and certifications, such as NSF/ANSI 51: Food Equipment Materials, ensuring materials do not leach harmful substances and can withstand food processing environments.

Future Trends in Solenoid Valve Technology

Miniaturization and IoT Integration for Solenoid Valves

The future of fluid control sees Solenoid Valves becoming smaller and smarter. Micro-electromechanical systems (MEMS) technology enables the creation of extremely small valves. These are suitable for nanosatellites and other miniaturized spacecraft. Shape memory alloys and piezoelectric materials lead to novel actuation mechanisms. These offer improved response times and reduced power requirements. Bosch has developed advanced designs for space exploration, focusing on miniaturization and weight reduction. Their valves use titanium alloys and high-performance polymers to withstand extreme conditions.

IoT integration significantly enhances valve functionality and monitoring. It enables real-time data collection, advanced analytics, and predictive maintenance. This leads to improved operational efficiency and reduced downtime. Continuous monitoring of parameters like valve position, temperature, pressure, and flow rates allows for early detection of potential failures. This technology supports data-driven decision-making, moving from reactive to predictive maintenance models. In medical devices, miniaturization and IoT integration are crucial for portable and wearable solutions. Industry 4.0 technologies revolutionize design and application, with smart valves equipped with sensors and advanced control algorithms.

Advanced Materials for Durable Solenoid Valves

Advanced materials significantly extend the lifespan and reduce maintenance for these critical components. High-quality, durable materials such as stainless steel, ceramic, or specialized alloys reduce wear in high-frequency applications. Coatings and surface treatments enhance hardness and reduce friction. Robert Bosch GmbH utilizes innovative materials and coatings to reduce friction and wear. They also employ a proprietary magnetic circuit design to minimize impact stress. Festo SE & Co. KG uses lightweight, high-strength materials and precision manufacturing for exceptional wear resistance. Their valves incorporate a patented damping system to reduce impact forces. Matching valve materials like brass, stainless steel, or plastic with the specific fluid prevents chemical corrosion or degradation. Specific seal materials, such as FKM for oils and fuels, EPDM for hot water, and PTFE for aggressive chemicals, ensure compatibility and prevent leaks.

Energy-Efficient Designs of Solenoid Valves

Design innovations are leading to more energy-efficient solenoid valves. High-efficiency coils require less power to operate while generating the necessary magnetic force. Optimized material selection, using materials with low friction and high wear resistance, reduces the energy needed for actuation. Smart control systems adjust valve operation based on real-time data, optimizing opening and closing cycles. This reduces unnecessary energy consumption. Bosch’s solutions incorporate advanced materials and miniaturization techniques, resulting in a 30% reduction in valve size. Delta Electronics’ valves utilize a proprietary low-power actuation mechanism, reducing energy consumption by up to 40%. Patented designs, such as one featuring two isolated magnetic coils and a self-charging capacitor, maintain positions without continuous power. The widespread adoption of energy-efficient designs leads to lower energy use, reduced carbon footprints, and improved water conservation.

Solenoid valves are fundamental for achieving advanced fluid control. They drive efficiency, safety, and innovation across modern industries. Their critical contributions and future outlook remain indispensable. These devices ensure precise regulation, automation, and reliability. They will continue to evolve, meeting new industrial demands and shaping the future of fluid management.

FAQ

What is the primary function of Solenoid Valves?

Solenoid Valves control fluid flow. They use an electrical current to open or close an orifice. This allows for precise and rapid regulation in various systems.

How do Solenoid Valves contribute to industrial automation?

Solenoid Valves integrate with PLCs and SCADA systems. They enable automated processes. This allows remote operation and real-time monitoring.

Are Solenoid Valves energy efficient?

Yes, many Solenoid Valves feature energy-efficient designs. They use less power for operation. This reduces energy consumption and operational costs.
