A solenoid valve may look like a simple on-off device, but its coil is highly sensitive to the voltage and current characteristics of the control circuit. In US industrial environments, a mismatch between coil rating and available power can turn a reliable pneumatic or hydraulic component into a heat source, leading to insulation breakdown, nuisance shutdowns, and expensive downtime. This article explains how AC and DC coils behave differently, why even small overvoltage conditions can sharply increase thermal stress, and what technicians should check when diagnosing repeated coil burnout. Understanding these details helps teams specify valves correctly, protect equipment, and improve long-term system reliability.
How Voltage Ratings Affect Solenoid Valve Coils
What AC and DC Voltage Ratings Mean
Industrial control systems typically utilize standard voltages such as 120V AC, 240V AC, 12V DC, or 24V DC. The distinction between alternating current (AC) and direct current (DC) ratings is fundamental to coil operation. High-voltage AC coils require thousands of turns of fine copper wire, whereas low-voltage DC coils use thicker wire. DC coils rely strictly on ohmic resistance to limit current flow, maintaining a constant steady-state current draw. Conversely, AC coils depend on both ohmic resistance and inductive reactance. When an AC coil is initially energized, the lack of an iron core in the magnetic center results in low impedance, drawing an inrush current typically 2 to 6 times higher than the steady-state holding current. Once the armature seats, the inductive reactance spikes, safely dropping current to its holding level. Increasingly common in US automation, modern dual-voltage or universal coils with integrated electronics mitigate some of these traditional AC/DC differences. These smart components can accept a wide range of input voltages and automatically regulate current. However, they introduce specific trade-offs, including higher initial costs, potential electromagnetic compatibility (EMC) issues, and complex failure modes if the integrated electronics fail.
Why Incorrect Voltage Causes Overheating
Applying incorrect voltage directly alters the thermal dynamics of the solenoid coil. According to Joule’s First Law, heat generation scales quadratically with voltage increases for resistive loads. For example, subjecting a standard 24V DC coil to a 10% overvoltage (26.4V) increases the thermal load by approximately 20%. This excess heat rapidly degrades the magnet wire’s fragile enamel coating. Most industrial coils utilize Class F insulation, rated for a maximum operating temperature of 155°C (311°F), or Class H, rated for 180°C (356°F). Sustained overvoltage pushes internal temperatures past these thresholds, embrittling the insulation and paving the way for short circuits between adjacent wire turns. Once a short occurs, overall resistance drops, drawing more current and accelerating total thermal destruction.

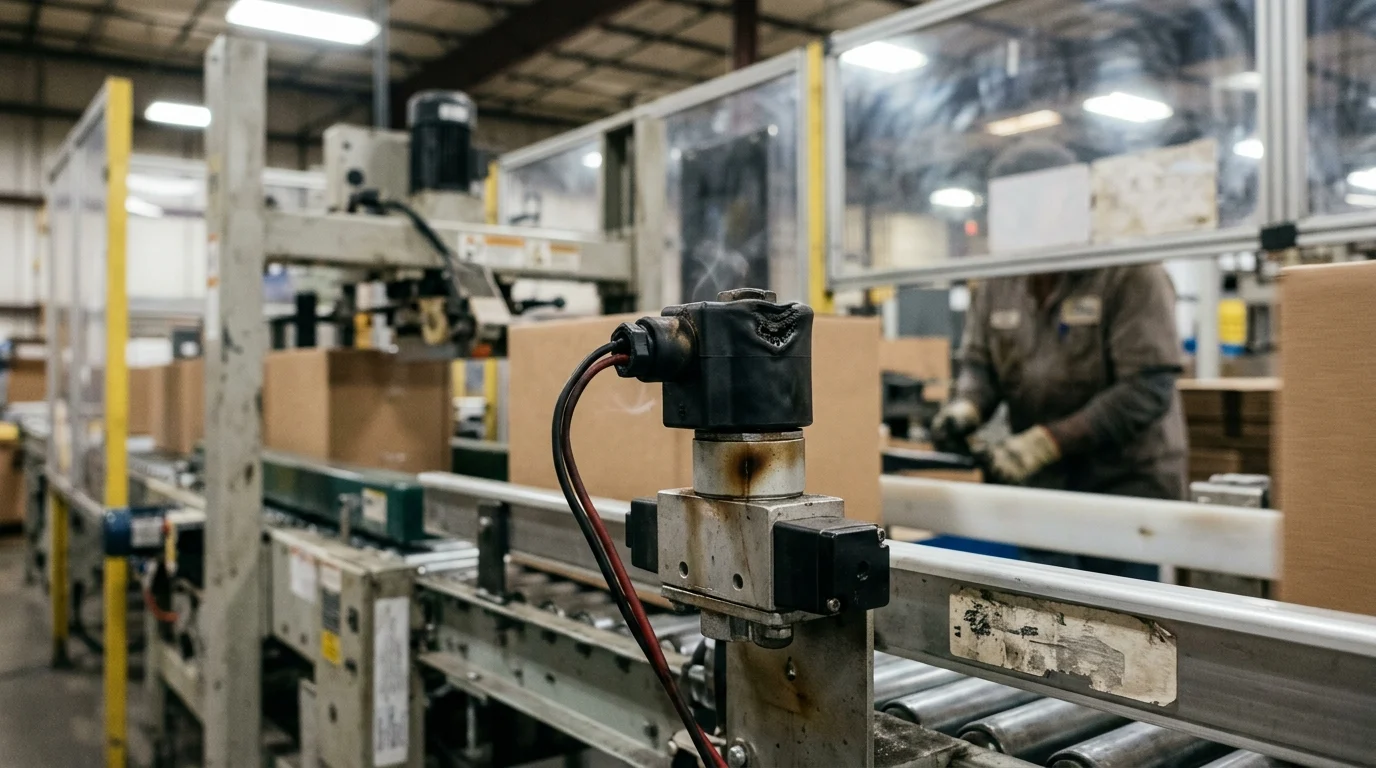

Common Failure Modes from Wrong Voltage
When voltage ratings are mismatched to the facility’s power supply, the resulting failures manifest in predictable, often catastrophic ways. Diagnosing these failures requires maintenance personnel to separate electrical thermal damage from mechanical jamming within the valve body.
Undervoltage, Overvoltage, and Coil Burnout
Overvoltage conditions force excessive current through windings, leading to uniform thermal degradation, melted bobbins, and eventual burnout. However, undervoltage is equally destructive for AC-powered solenoids. It is critical to note that voltage tolerance ranges vary significantly by manufacturer; while some specify a strict ±10% window, others allow up to ±15%. If supply voltage drops below the manufacturer’s specific undervoltage threshold (often around 85% of the nominal rating), the resulting magnetic field lacks the force to pull the armature against the internal return spring. Because the armature never fully seats, inductive reactance remains at its lowest point, and the coil continues drawing its massive inrush current indefinitely. Under these conditions, a standard AC coil can reach catastrophic burnout temperatures in 10 to 15 minutes. Specialized components used in heavy machinery, such as UL 429-recognized or NEMA ICS 2-compliant transmission solenoid valves, require strict voltage regulation to maintain precise magnetic flux for high-pressure fluid shifting without risking rapid thermal overload.
How to Separate Voltage Issues from Mechanical Problems
Maintenance personnel must accurately distinguish between a coil destroyed by incorrect voltage and one burnt out due to a mechanically jammed armature. A jammed armature mimics an undervoltage scenario in AC coils, keeping inrush current high.
| Diagnostic Metric | Electrical Failure (Wrong Voltage) | Mechanical Failure (Jammed Armature) |
|---|---|---|
| Coil Resistance | Reads infinite (open) or near-zero (shorted) | Reads within normal spec (e.g., 20–50 Ω for 24V DC) |
| Physical Condition | Melted bobbin, uniformly blackened exterior | Localized heat damage, scored core tube |
| Acoustic Signature (AC) | Silent (dead coil) or single initial hum | Continuous loud buzzing or chattering |
| Acoustic Signature (DC) | Silent (dead coil) | Audible click on actuation, faint hum under load |
| Voltage at Terminal | Measures >110% or <85% of nominal | Measures nominal rating (e.g., 120V AC) |
If a multimeter reveals the supply voltage is perfectly correct under load but the coil still burned out and exhibited severe chattering prior to failure, the root cause is likely particulate contamination preventing the armature from seating.
How to Prevent Premature Coil Failure
Mitigating thermal degradation of magnet wire requires proactive electrical auditing and rigorous specification protocols during the procurement and installation phases. Ensuring absolute voltage compatibility extends the lifecycle of the valve and prevents costly unplanned downtime.
Voltage Verification Steps for Maintenance Teams
Maintenance teams must verify supply voltage directly at the valve terminals while the circuit is under full electrical load. Long wire runs across factory floors can introduce significant voltage drops; a 24V DC supply at the programmable logic controller might measure only 20V DC at the physical valve, pushing it dangerously below the standard operational threshold. Technicians should utilize true RMS multimeters to capture accurate baseline readings and deploy portable oscilloscopes to detect transient voltage spikes. In heavy industrial environments, inductive kickback from adjacent motors can introduce microsecond spikes exceeding 1,000 volts into the control circuit.
Key Takeaways
- Always match the solenoid coil’s AC or DC rating to the actual control voltage before installation.
- A 10% overvoltage on a 24V DC coil can increase thermal load by about 20%, accelerating insulation breakdown.
- AC coils may draw inrush current 2 to 6 times higher than holding current until the armature seats properly.
- Use Class F or Class H insulation ratings as temperature limits, with Class F rated to 155°C and Class H rated to 180°C.
- Measure voltage under load and compare coil resistance to manufacturer specifications when diagnosing premature failures.
- Consider universal-voltage coils where supply variation is common, but account for added cost, EMC risks, and electronic failure modes.
Frequently Asked Questions
Why does overvoltage burn out a solenoid valve coil?
Overvoltage increases current and heat inside the winding. Because heat rises roughly with the square of voltage, even a 10% overvoltage can raise thermal load by about 20%, damaging insulation and causing shorted turns.
What happens if a solenoid coil is undervolted?
Undervoltage may prevent the armature from fully seating. In AC coils, this can keep current high, causing buzzing, overheating, erratic valve operation, and premature coil failure.
Can a 24V DC coil be used on 24V AC?
No, unless the coil is specifically rated for both. AC and DC coils control current differently, so using the wrong supply type can cause excessive current, weak actuation, overheating, or immediate failure.
What are common industrial solenoid valve voltage ratings in the US?
Common ratings include 120V AC, 240V AC, 12V DC, and 24V DC. The correct choice depends on the control system, power supply, duty cycle, and applicable electrical standards.
How can technicians confirm a voltage mismatch?
Check the coil nameplate, measure actual supply voltage under load, verify AC or DC output, inspect for heat damage, and compare coil resistance with manufacturer specifications.
