Industrial automation buyers are under pressure to simplify machine designs, reduce electrical risk, and source components that work across US and EU production environments. One reason 24V DC solenoid valves have become so widely specified is that they align directly with PLCs, distributed I/O, and modern low-voltage safety practices. For pneumatic, hydraulic, and process control systems, that means fewer relays, cleaner panels, lower heat, and more predictable maintenance. But voltage selection is not just a purchasing checkbox: cable length, coil wattage, response time, media type, and operating temperature all affect reliability. This article explains why 24V DC dominates modern machinery—and where AC coils still make sense.

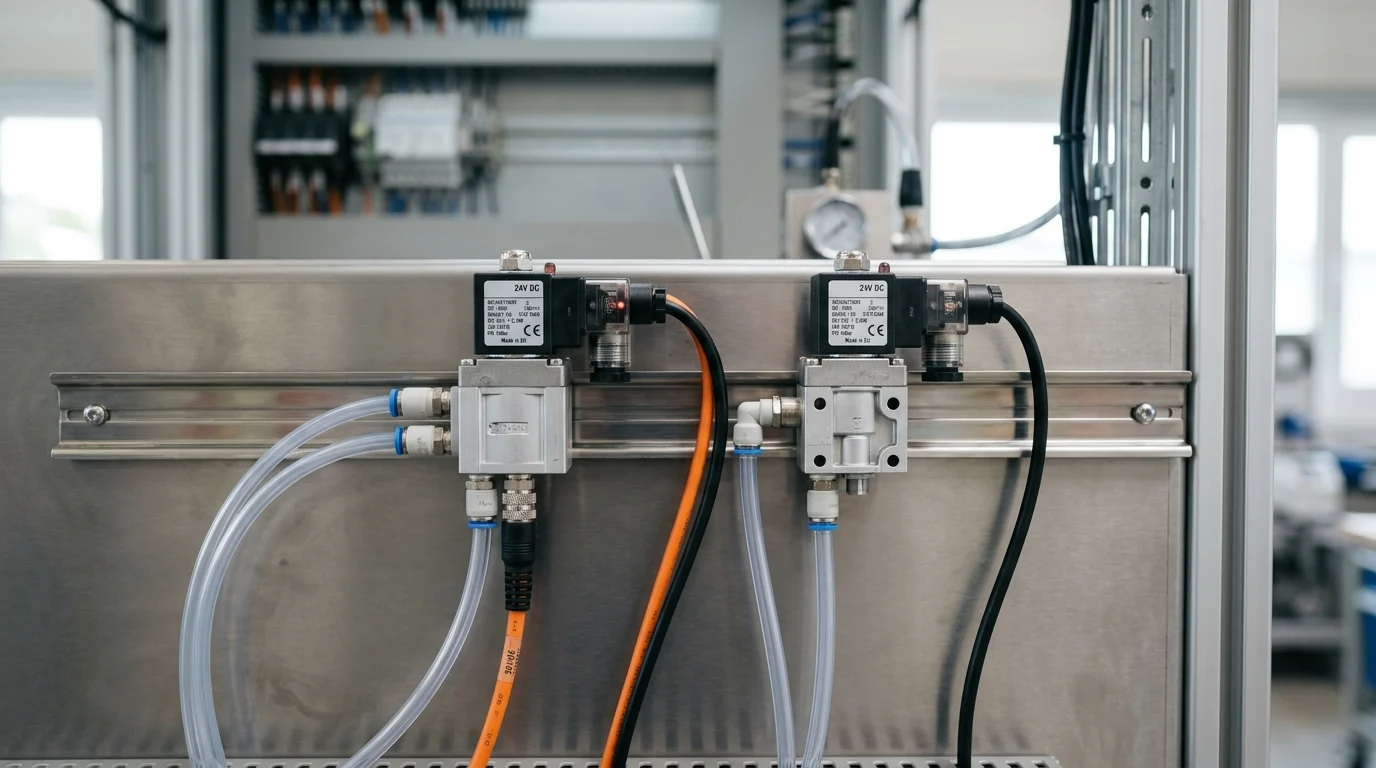

Why 24V DC Solenoid Valves Matter in Industrial Automation
In the landscape of industrial automation, the reliable control of fluids and gases is fundamental to machine performance. As manufacturing facilities across the United States and the European Union modernize their infrastructure, system integrators and buyers are increasingly standardizing components to streamline supply chains and enhance safety. Central to this standardization is the widespread adoption of 24V DC solenoid valves, which have largely displaced legacy higher-voltage AC alternatives in modern machinery. However, it is important to note that 24V DC is not universally applicable; AC coils remain the dominant and preferred standard in many steam, high-temperature, and heavy-duty process fluid applications where higher holding power is required.
What industrial solenoid valves do
At their core, industrial solenoid valves act as the critical interface between electronic control architectures and pneumatic or hydraulic power systems. By utilizing an electromagnetic coil to actuate an internal plunger, these valves open or close orifices to direct the flow of media such as compressed air, water, or hydraulic oil. In high-speed automated environments, mechanical latency must be minimized. Modern 24V DC solenoid designs achieve rapid actuation response times, enabling the fast cycling required in packaging, assembly, and process manufacturing. Furthermore, precision-machined internal components ensure that leakage rates remain strictly within acceptable tolerances, preventing pressure drops that could compromise downstream pneumatic actuators.
Why 24V DC is the preferred control voltage
The transition toward 24V DC as the de facto control voltage is driven by a combination of safety regulations, control system compatibility, and energy efficiency. Programmable Logic Controllers (PLCs) and distributed I/O modules inherently operate on 24V DC logic. Utilizing solenoid valves that share this voltage eliminates the need for interposing relays and secondary AC power distribution, thereby reducing panel space and wiring complexity. However, specifying engineers must account for voltage drop over long cable runs, which can cause insufficient pull-in force or coil burnout. This makes wire gauge and distance calculations a critical installation constraint in large-scale machinery requiring decentralized I/O.
From a regulatory and safety perspective, 24V DC falls well below the 60V DC threshold for Safety Extra Low Voltage (SELV) and Protected Extra Low Voltage (PELV) classifications. This allows maintenance personnel to service valve manifolds and sensors with a significantly reduced risk of electric shock, thereby simplifying lockout/tagout procedures and eliminating the need for specialized personal protective equipment. Additionally, modern 24V DC coils are highly efficient. Standard pilot-operated pneumatic valves typically draw between 2.0 and 5.0 watts during continuous holding operation, while direct-acting process valves for bulk fluids will naturally draw more power. This low power consumption significantly reduces thermal accumulation inside control cabinets compared to legacy 120V AC coils, extending the operational lifespan of surrounding electronic components.
Key Technical Criteria for Selecting 24V DC Solenoid Valves
Specifying the correct 24V DC solenoid valve requires a rigorous evaluation of both fluid dynamics and electrical characteristics. Engineers must align technical requirements with commercial availability, ensuring that the selected components can handle the application’s physical demands while integrating seamlessly into the designated control network.
Valve type, port size, and flow requirements
The fundamental configuration of the valve is dictated by the actuation requirement of the system. Two-way (2/2) valves are standard for simple on/off flow control, while three-way (3/2) and five-way (5/2) configurations are engineered to drive single-acting and double-acting pneumatic cylinders, respectively. It is also essential to distinguish between actuation methods: pilot-operated valves require a minimum pressure differential across the valve to function, whereas direct-acting valves do not, making this distinction critical for correct specification.
Port sizing typically ranges from 1/8-inch to 2-inch NPT or BSPP, depending on the regional standard of the machinery. To ensure adequate actuator speed without over-specifying the component, engineers rely on the valve’s flow coefficient (Cv). A Cv rating dictates the volume of water (in US gallons per minute) that will flow through the valve with a 1 psi pressure drop. Industrial pneumatic applications generally require Cv values ranging from 0.1 for micro-valves to over 10.0 for main process lines, making accurate flow calculations critical prior to procurement.
Comparison factors for engineering and procurement
Beyond flow and port size, environmental resilience and lifecycle durability are paramount when comparing manufacturers. Valves deployed in washdown environments or outdoor applications must carry appropriate ingress protection ratings, such as IP65 or IP67, to prevent moisture and dust from compromising the electrical coil. Furthermore, the Mean Time Between Failures (MTBF) is a critical metric for production uptime; premium industrial solenoid valves are often engineered and tested with targets exceeding millions of cycles before requiring seal replacement or maintenance.
Note: The table below provides general estimates. Actual wattage and Cv ranges differ significantly by brand, specific coil design, and application context, so buyers should always verify exact specifications with the manufacturer.
| Valve Configuration | Typical Flow Coefficient (Cv) | Power Draw (24V DC) | Primary Industrial Application |
|---|---|---|---|
| 2/2-Way Direct Acting | 0.1 – 0.5 | 3.0W – 5.0W | Low-flow fluid shutoff, pilot control |
| 3/2-Way Pilot Operated | 0.5 – 2.0 | 1.5W – 3.0W | Single-acting cylinder actuation |
| 5/2-Way Spool Valve | 1.0 – 4.0 | 1.5W – 2.5W | Double-acting pneumatic cylinders |
| 2/2-Way Process Valve | 5.0 – 15.0+ | 8.0W – 12.0W | High-volume cooling water or bulk fluids |
How to Source 24V DC Solenoid Valves for the US
Navigating the supply chain for 24V DC solenoid valves requires a strategic approach. While sourcing specifically for the US market involves strict domestic standards, global machinery builders often address EU procurement requirements simultaneously to ensure cross-market compatibility. Buyers must evaluate potential manufacturing partners not just on unit cost, but on their ability to consistently meet stringent quality standards and deliver within acceptable timeframes across regions.
Supplier capability and quality verification
When vetting suppliers, compliance with international and regional standards is the first barrier to entry.
Key Takeaways
- Specify 24V DC solenoid valves when designing PLC-based machinery to reduce relays, simplify wiring, and save control panel space.
- Use 24V DC control circuits to stay below the 60V DC SELV/PELV threshold and reduce electric shock risk during maintenance.
- Check cable length and wire gauge on decentralized machinery because voltage drop can cause weak pull-in force or coil overheating.
- Expect many pilot-operated pneumatic 24V DC valves to draw about 2.0 to 5.0 watts during holding, but verify higher loads for direct-acting process valves.
- Do not assume 24V DC is universal; consider AC coils for steam, high-temperature, and heavy-duty process fluid applications requiring higher holding power.
Frequently Asked Questions
Why are 24V DC solenoid valves common in US and EU machinery?
They match PLC and distributed I/O control voltages, reduce wiring complexity, improve safety under SELV/PELV limits, and consume less power than many legacy AC coil options.
Are 24V DC solenoid valves suitable for every industrial application?
No. AC coils are still preferred in many steam, high-temperature, and heavy-duty process fluid applications where higher holding power or specific operating conditions are required.
How much power do typical 24V DC pneumatic solenoid valves use?
Standard pilot-operated pneumatic valves typically draw about 2.0 to 5.0 watts during continuous holding, while direct-acting process valves for bulk fluids usually require more power.
What safety advantage does 24V DC provide?
At 24V DC, the circuit is below the 60V DC SELV/PELV threshold, reducing electric shock risk and making maintenance around valve manifolds and sensors safer.
What installation issue is important with long 24V DC cable runs?
Voltage drop must be calculated carefully. Excessive drop can reduce pull-in force, cause unreliable valve actuation, or increase the risk of coil overheating and failure.
