1. Product Identification & Target Models

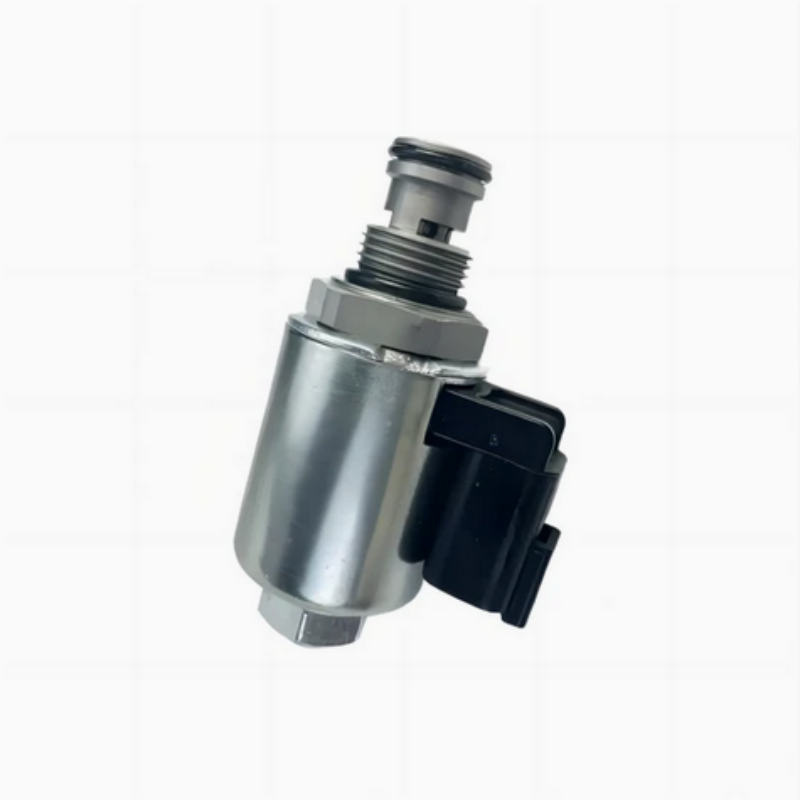

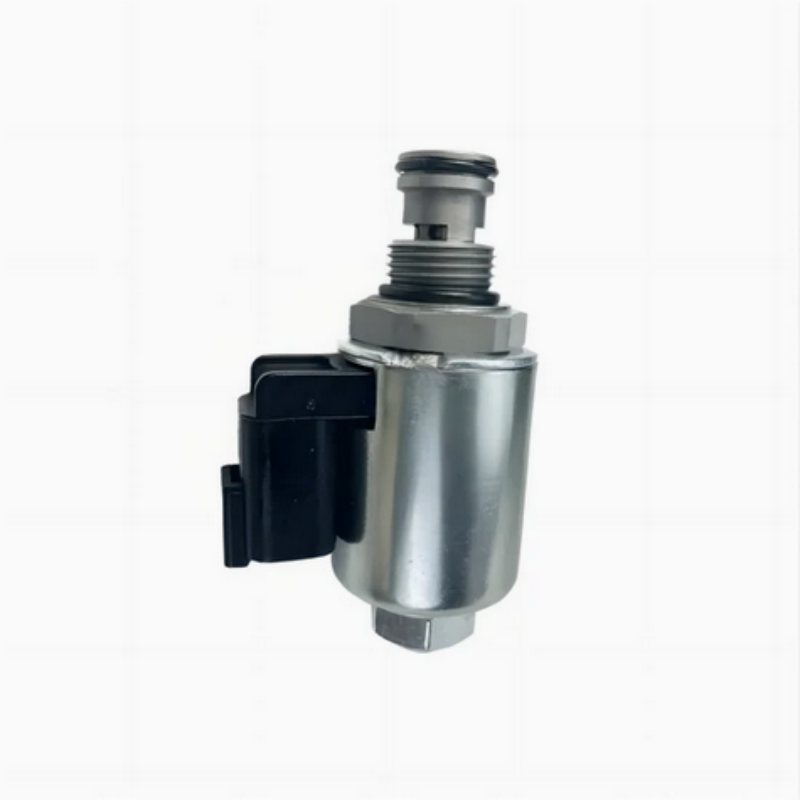

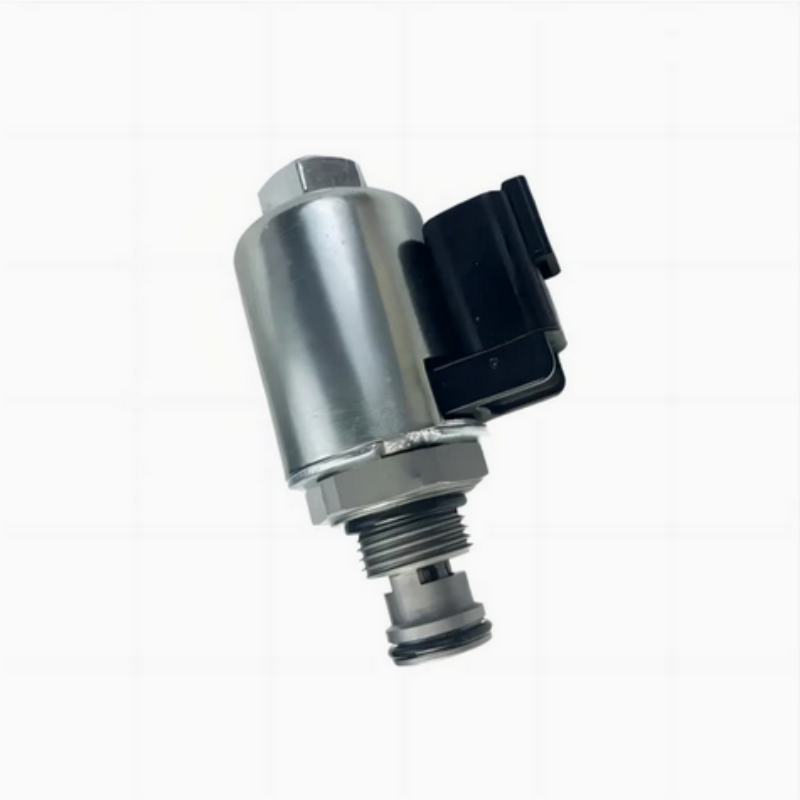

• Product Model / OEM Part Number: 175-3893

• Product Type: Loader Control Solenoid Valve.

• Compatible Equipment: This solenoid valve is a replacement accessory designed for specific models of excavators and machinery.

  • Suitable for Excavator Models: 120H, 140H, 160H series.

  • Suitable as Machinery Accessories: It specifically serves as a Loader Control Valve component within the hydraulic system of compatible equipment.

2. What Is Its Core Purpose? (Function)
This 175-3893 Loader Solenoid Valve is an electro-hydraulic control component. Its primary function is to act as an electrical-to-hydraulic interface for the loader's working functions.

• Receives Electrical Commands: It gets signals from the machine's main electronic control unit (ECU) or a dedicated joystick controller.

• Directs Hydraulic Power: Upon energization, the valve's internal spool shifts. This action directs high-pressure hydraulic fluid to specific ports on the main loader control valve block.

• Controls Loader Movements: By controlling the pilot hydraulic pressure, it enables or modulates the primary valve's operation, which in turn controls the loader's key functions such as bucket lift, lower, tilt (dump), and curl (rack back). It is essential for the precise and responsive operation of the loader attachment.

3. What Kind of Product Is It? (Product Category)
This component belongs to the following specific categories:

• Hydraulic Pilot Solenoid Valve: It typically provides the pilot signal pressure required to actuate a larger, main control valve.

• Machine-Specific Accessory: It is not a universal part but is engineered to match the hydraulic pressure, flow, voltage, and physical connection specifications of the designated excavator/loader models (e.g., 120H-160H series).

• Aftermarket/Replacement Component: It serves as a direct functional replacement for the original OEM part in repair and maintenance scenarios to restore the machine's loader control functionality.

4. Key Characteristics
Given its application, this valve is characterized by:

• Model-Specific Design: Its electrical connectors, mounting interface, and hydraulic port threads are designed to match the exact configuration of the compatible machinery.

• Rugged Durability: It is built to withstand the high vibration, pressure surges, and temperature variations present in a heavy equipment hydraulic system.

• Reliable Performance: Its consistent operation and response time are critical for safe and efficient loader operation.

Summary:
The 175-3893 Loader Solenoid Valve is a critical electrical interface that translates operator commands into hydraulic actions for controlling the loader functions on compatible excavators like the 120H, 140H, and 160H series. A failure of this solenoid typically results in a loss of control over one or more loader movements (e.g., the bucket will not curl). Replacing a faulty valve with a compatible and high-quality unit like the 175-3893 is necessary to restore the precise and reliable operation of the equipment's loader attachment.
