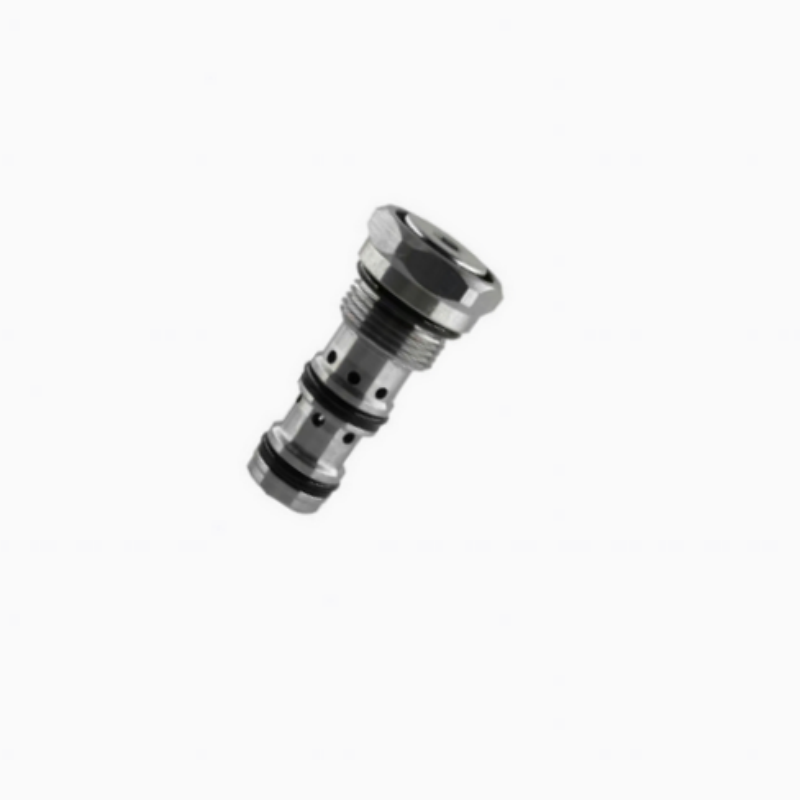

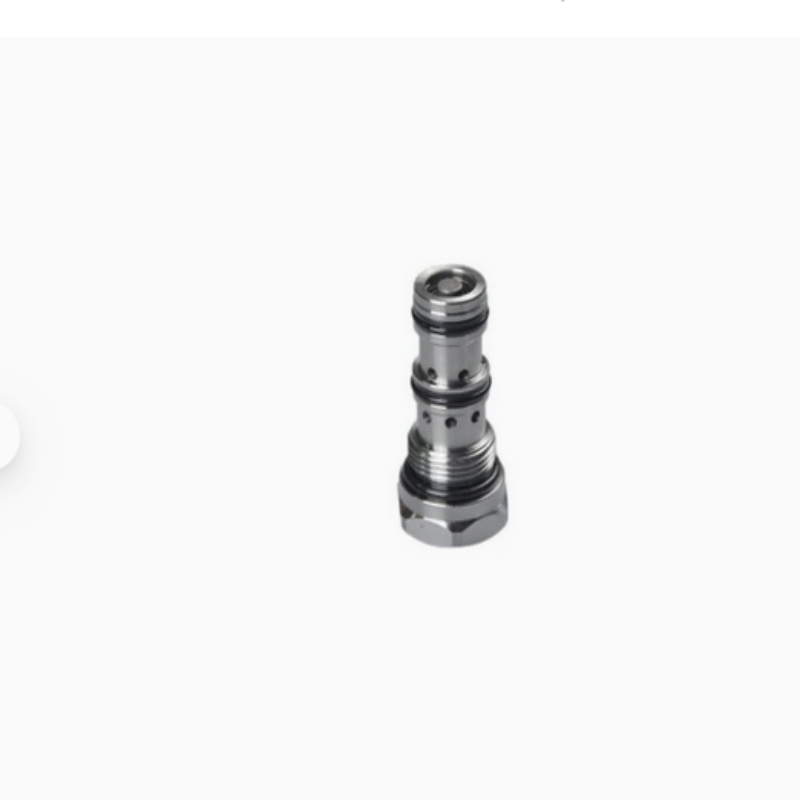

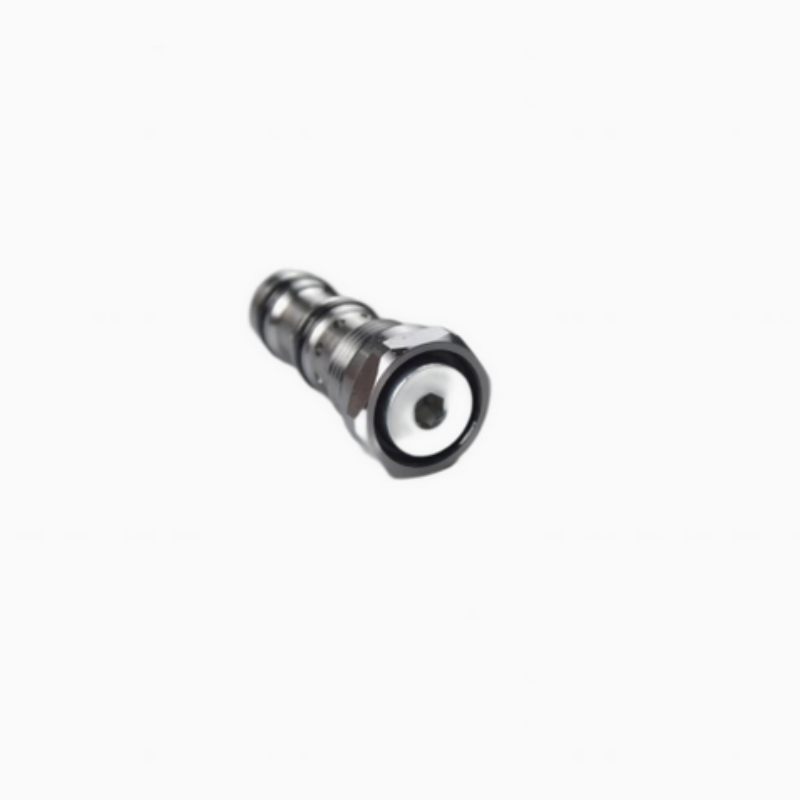

In simple terms, the YDF10-00 is a specialized one-way valve, but with a "remote control" feature. It's a cartridge-type, pilot-operated check valve.

• Check Valve: Its main job is to allow hydraulic oil to flow in one direction while firmly blocking it in the opposite direction.

• Pilot-Operated: Unlike a simple spring-loaded check valve, this one can be opened electronically. When a small control signal (pilot pressure) is sent, it unlocks, allowing reverse flow.

• Cartridge Type: It's not a standalone valve with its own piping ports. Instead, it's built like a threaded "plug" or "logic element" designed to be screwed directly into a custom-made block (called a manifold) on the machine.

What is it used for?
Its primary use is for safety and precision control in heavy machinery, especially excavators.

• Holds Loads Securely: It's commonly installed in the lines leading to excavator arm or boom cylinders. It locks the hydraulic oil inside the cylinder, preventing the arm from accidentally dropping due to gravity or an external force, even if a hose were to fail. This is critical for safety when the machine is holding a load or people are working nearby.

• Enables Controlled Movement: When the operator needs to lower the arm, the machine's control system sends an electronic signal. The valve opens via the pilot pressure, allowing the oil to flow back in a controlled manner for smooth and safe operation.

Key Features / Why is it designed this way?

1. Compact & Integrated: The cartridge design allows multiple valves to be packed tightly into a single, streamlined manifold block. This saves a tremendous amount of space, reduces external piping (and leak points), and makes the entire hydraulic system more reliable and easier to manufacture.

2. High Reliability & Safety: These valves are engineered to seal extremely well and withstand the intense pressures of hydraulic systems. Their fail-safe design prioritizes holding position.

3. Design Flexibility for Manufacturers: Equipment manufacturers (OEMs) favor cartridge valves. They can design a single, custom "control block" that houses all the different cartridge valves needed for their specific machine model, creating an optimized and proprietary hydraulic circuit.

In short, think of the YDF10-00 as the heavy-duty, electronically-controlled hydraulic "door lock" that keeps an excavator's arm safely in place. Its clever cartridge design is what allows modern machinery to be so powerful, yet so compact and intelligent in its control.
